Sterilizers
A sterilizer can achieve the destruction of all pathogenic organisms using heat, pressure or radiation. International hygiene guidelines recommend using autoclaves, which perform sterilization of medical devices and instruments with saturated steam. Autoclaves are widely used in dentistry, medicine, podiatry, tattooing and veterinary medicine. The units for steam sterilization vary in size and function depending on the instruments intented to be sterilized..
Hospital Items which can be sterilized in steam steriliser:
- Stainless steel
- Metallic medical tools, surgical Instruments
- Contaminated solid items
- Plastic pipette tips (inside appropriate biohazard beds)
- Polypropylene (PP secondary containers) and polycarbonate (PC) plastics (keep containers and bags open so that the steam can penetrate them)
- Biological tissue culture flasks and plates
- Media Solutions
- Glassware (Pyrex, Pyrex type materials, or type I borosilicate glass)
- Paper (if placed inside a biohazardous autoclave waste bag)
- Stainless steel
- Latex gloves, vinyl (inside biohazardous autoclave waste bags)
- Hospital linens, textile materials
Why hospitals should use imported good quality steam sterilizers only ?
- Only few imported sterilisers can give uniform temperature with proper steam penetration
- To Check Steam steriliser quality Class 2 indicator should be used .A commercially available Bowie-Dick-type test sheet should be placed in the centre of the pack. The test pack should be placed horizontally in the front, bottom section of the sterilizer rack, near the door and over the drain, in an otherwise empty chamber and run at 134°C for 3.5 minutes. The test is used each day the vacuum-type steam sterilizer is used, before the first processed load
- Local sterilisers take 5 to 7 mins to pass the test and indicator colour not changed uniformly.

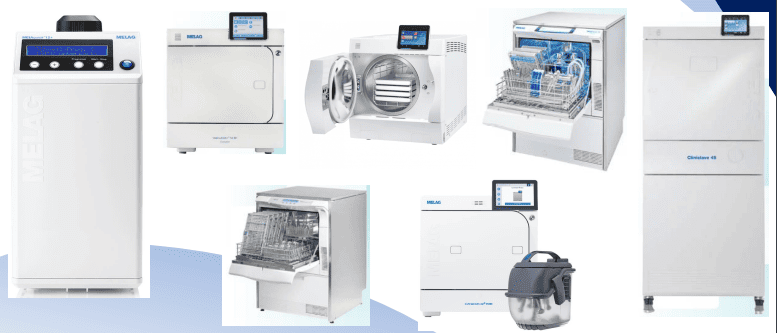

Imported Sterilizer
Why Melag ?
- Company Headquarter at Berlin, Germany
- Started in year 1951.
- Worldwide sales of over 5,00,000 steam sterilizers and autoclaves are proof of the international success and appreciation of the MELAG product line.
- More than 500 employees.
- Wide range of varieties available.
- EC certified.
- EN ISO 13485 Certified
- MDD Annex II excl. 4

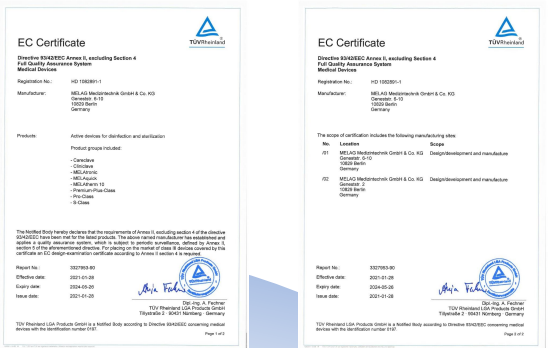

MELAG Certifications

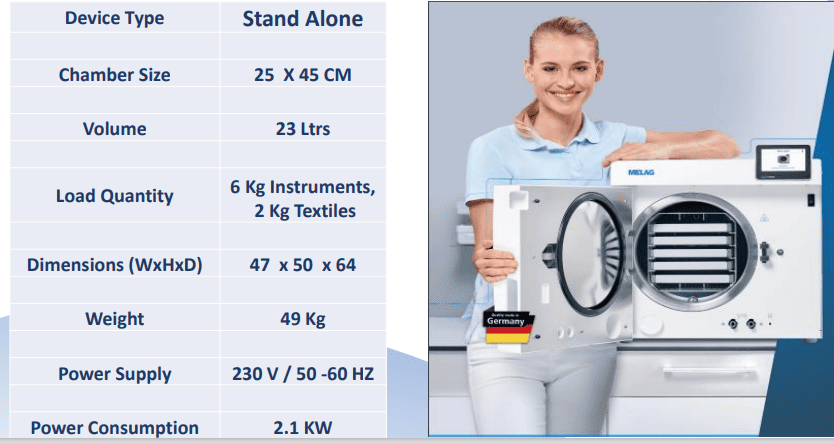

Melag Pro Limelag Line Model – Vacuclave 123
Features of Proline Vacuclave 123
- Powerful Class-B Vacuum Procedure – Reliable Sterilization of up to 6 Kg on 5 Trays in only 15 to 28 minutes ( Plus Drying )
- Smart Touch display with LED status – Touchscreen with intuitive interface for simple operation like your smartphone
- Connectivity & data logging – Compliance with legal requirement by saving the sterilization parameters via USB or Network.
- Stand Alone device concept – Integrated water tanks and highly effective air cooling for site independent operation without cooling water.
- Power save energy saving mode – Heater & display go into standby mode between sterilizations for top energy efficiency.
- Easy care routine concept – User friendly optimizations for efficient filter replacement, tank cleaning & water supply
Pro-Class Series
Features of Pro-Class Series
- Performance: Convincing performance: Perfect sterilization and drying results of up to 7 kg in only 20 – 39 minutes (Quick-Programs incl. prevacuum and drying).
- Safety: Documentation made easy: The high-precision microprocessor control monitors all the relevant process parameters and saves the logs on aligned documentation media.
- User-friendliness: The tried-and-tested MELAG 4-key concept in connection with digital tools makes for ease of use and avoids application errors in everyday use.
- Flexibility: As versatile as your requirements: Match the sterilization process using a fixed water connection or stand-alone autoclave and three chamber depths to suit your individual needs
| Device Design | Model | Volume |
|---|---|---|
| Tap - Water Connection | Vacuklav 30 B+
Vacuklave 24 B+ Vacuklave 24 BL+ |
17 Ltr. 23 Ltr. 29 Ltr. |
| Stand - alone | Vacuklay 31 B+
Vacuklave 23 B+ |
17 Ltr. 23 Ltr. |
Premium Class – Sterilizers
| Model Name | Vacuclav 40 B+ | Vacuclav 41 B+ | Vacuclav 43 B+ | Vacuclav 44 B+ |
|---|---|---|---|---|
| Chamber Size | 25 CM X 35 CM Long | 25 CM X 35 CM Long | 25 CM X 45 CM Long | 25 CM X 45 CM Long |
| Volume | 18 Ltrs | 18 Ltrs | 23 Ltrs | 23 Ltrs |
| Load Quantity | Max 9 Kg Instruments, 2 Kg Textiles | Max 9 Kg Instruments, 2 Kg Textiles | Max 9 Kg Instruments, 2.5 Kg Textiles | Max 9 Kg Instruments, 2.5 Kg Textiles |
| Dimensions (WxHxD) | 46 X 50 X 55 CM | 46 X 50 X 55 CM | 46 X 50 X 55 CM | 46 X 50 X 55 CM |
| Weight | 55 Kg | 60 Kg | 69 Kg | 64 Kg |
| Power Supply | 220 - 240 V / 50-60 HZ (3.4 Kw) | |||
Pro Class – Sterilizers
Features:
- Performance: Convincing performance: Perfect sterilization and drying results of up to 7 kg in only 20 – 39 minutes (Quick-Programs incl. pre vacuum and drying).
- Safety: Documentation made easy: The high-precision microprocessor control monitors all the relevant process parameters and saves the logs on aligned documentation media.
- User-friendliness: The tried-and-tested MELAG 4-key concept in connection with digital tools makes for ease of use and avoids application errors in everyday use.
- Flexibility: As versatile as your requirements: Match the sterilization process using a fixed water connection or stand-alone autoclave and three chamber depths to suit your individual needs
| Device Design | Model | Volume |
|---|---|---|
| Tap - Water Connection | Vacuklav 30 B+
Vacuklave 24 B+ Vacuklave 24 BL+ |
17 Ltr. 23 Ltr. 29 Ltr. |
| Stand - alone | Vacuklay 31 B+
Vacuklave 23 B+ |
17 Ltr. 23 Ltr. |
| Model Name | Vacuclav 30 B+ | Vacuclav 31 B+ | Vacuclav 23 B+ | Vacuclav 24 B+ | Vacuclav 24 BL+ |
|---|---|---|---|---|---|
| Device Type | Fixed Water Connection | Stand Alone | Stand Alone | Fixed Water Connection | Fixed Water Connection |
| Chamber Size | 35 X 25 CM | 35 X 25 CM | 45 X 25 CM | 45 X 25 CM | 60 X 25 CM |
| Volume | 17 Ltrs | 17 Ltrs | 23 Ltrs | 23 Ltrs | 29 Ltrs |
| Load Quantity | 5 Kg Instruments, 2 Kg Textiles | 5 Kg Instruments, 1.8 Kg Textiles | 5 Kg Instruments, 2 Kg Textiles | 7 Kg Instruments, 2.5 Kg Textiles | 7 Kg Instruments, 2.5 Kg Textiles |
| Dimensions (WxHxD) | 43 x 50 x 66 | 43 x 49 x 62 | 43 x 49 x 74 | 43 x 50 x 71 | 43 x 50 x 84 |
Melag Sterilizers From 50 Ltr Onwards
- Vacuclav 550
- Cliniclave 45 – Single Door
• Cliniclave 45
• Cliniclave 45M Star - Cliniclave 45 – Double door
• Cliniclave 45 D
• Cliniclave 45 MD
Vacuclave Cliniclave Single & Double door
Vacuclave 550
- Optimal drying results :– at any time! Rely on perfect results: DRYtelligence® optimally adapts the drying process to your load. The intelligent algorithm reduces the drying time by up to 80 % – and thus saves a lot of time, money and energy
- Intuitive like your smartphone:- Uncompromising comfort: The extra-large Smart-Touch Display ensures operation, documentation and approval in a breeze.
- Saving water also means:- saving money! 100 % reliability with 0 % cooling water – the patented Coolify Technology combines highly efficient air cooling with smart temperature monitoring
- More instruments. In less time :- The new XL 53 Ltr twin chamber concept, record cycle times and high loading capacities offer maximum versatility - and even more space for up to 25 kg instruments and 16 trays.
- More power. Less energy:- The patented system for heat recovery deploys the heat from the used steam to generate new steam. The Recovery technology not only reduces energy consumption by up to 15 % per cycle, but also heat dissipation into the decontamination room Airox Technologies Limited Vacuclave 550 A
Cliniclave Series
Features:
- XXL colour-touch display: The intuitive touch operating concept allows quick program selection and helps to avoid errors.
- Documentation and approval: The sterilization batch is documented and issued with approval quickly, safely and paper-free – all performed directly on the display
- Microprocessor control and monitoring electronics for secure and valid processes
- Electrical door lock for security and ease of use
- Air gap in accordance with DIN EN1717 for protection of the drinking water
- High-performance vacuum pump for the best process results
- Patented double jacket technology for the highest-quality saturated steam
- Reverse osmosis unit for independent and automatic aqua dem subsequent feedin
| Device Design | Model | Volume |
|---|---|---|
| Single - Door | Cliniclave 45
Cliniclave 45 M |
105 Ltr. 200 Ltr. |
| Double - Door | Cliniclave 45 D
Cliniclave 43 MD |
110 Ltr. 205 Ltr. |
Cliniclave Series Models
| Model Name | Vacuclav 30 B+ | Vacuclav 31 B+ | Vacuclav 23 B+ | Vacuclav 24 B+ | Vacuclav 24 BL+ |
|---|---|---|---|---|---|
| Device Type | Fixed Water Connection | Stand Alone | Stand Alone | Fixed Water Connection | Fixed Water Connection |
| Chamber Size | 35 X 25 CM | 35 X 25 CM | 45 X 25 CM | 45 X 25 CM | 60 X 25 CM |
| Volume | 17 Ltrs | 17 Ltrs | 23 Ltrs | 23 Ltrs | 29 Ltrs |
| Load Quantity | 5 Kg Instruments, 2 Kg Textiles | 5 Kg Instruments, 1.8 Kg Textiles | 5 Kg Instruments, 2 Kg Textiles | 7 Kg Instruments, 2.5 Kg Textiles | 7 Kg Instruments, 2.5 Kg Textiles |
| Dimensions (WxHxD) | 43 x 50 x 66 | 43 x 49 x 62 | 43 x 49 x 74 | 43 x 50 x 71 | 43 x 50 x 84 |
Melatherm Models
| Model Name | Melatherm 10 | Melatherm 10 Evolution |
|---|---|---|
| Device Dimension | 60 x 84 x 68 CM | |
| Chamber Dimension | 47 x 41 x 4 | |
| Weight | 80 Kg | |
| Dimensions (WxHxD) | 65 x 160 x 101 | |
| Power Supply | 9.3 Kw for DTA & 3.3 KW for DTB | 10.2 Kw for DTA & 3.3 KW for DTB |
The Melag Washer-Disinfectors
MELAtherm 10 Evolution
AquaBoost:
The new high-performance circulation pump ensures a 44 %
better cleaning outcome and greater capacities:
Decontaminate up to 23 handpieces and turbines per cycle .
MELAconnect App:
Smart workfl ow in instrument decontamination: Monitor the
device status and program progress at any time and from
anywhere in your practice and clinic using the MELAG mobile
app. The MELAconnect App provides even greater
convenience: user manuals, video tutorials, troubleshooting
and the seal check function for efficient workflows.
MIXTA Company Info
- Mixta, founded in 2007, is the culmination of 15 years of experience in the healthcare industry. We can assist you in making the best possible option for you and will be there for you every step of the process.
- Our products are distributed throughout five continents and 94 countries.
- Our services Central Sterilization Supply Department Units Endoscopy Reprocess Equipment Stainless Steel Operating Room Equipment General Stainless Steel Hospital Equipment Morgue Room Anatomy Lab Stainless Steel Equipment Patient Room Furniture
- Our strengths : Extensive product range, Superior quality, Outstanding customer service, Flexible solutions, Ongoing research and development MİXTA Project Design and Planning.
Imported Steam Sterilizer MIXTA
- Mixta offer a wide range of high-quality steam sterilizers to suit the needs of any facility. These sterilizers are designed with both functionality and ease of use in mind, featuring a sleek, modern design and simple controls.
- Mixta steam sterilizers come in a variety of sizes and configurations to accommodate the needs of different facilities. They are equipped with advanced features such as automatic shut-off, temperature and pressure gauges, and cycle monitoring to ensure that each sterilization cycle is effective and efficient.
- In addition to their sterilization capabilities, steam sterilizers are also energy efficient and environmentally friendly. They use less water and electricity compared to other sterilization methods, and their compact size makes them easy to install in any facility
Mixta Product Range
- Mixta Steam sterilizers are available in Single door & Double door.
- The capacity starts from 160 ltrs to 945 ltrs
Mixta Steam Sterilizer with Loading Trolley
MIXTA Steam Sterilizer Specifications
